Roland Duo-Capture USB Audio Interface

Roland Duo-Capture USB Audio Interface

Be the first to review this product

$79.00

In stock

Please Login or Submit Email
Request a New Password

Enter the email address you used when creating your account and click submit to have a new password emailed to you.



Free Shipping*
Make
Offer

Buy now and earn 158 Unique Reward Points.

Description Versatile Audio I/O for Mac and PC

Two is the magic number for the DUO-CAPTURE USB audio interface. It’s equipped with two audio inputs and two audio outputs. The dual headphone outs are perfect for side-by-side musician/engineer sessions, with no additional mixing hardware required. DUO-CAPTURE boasts ultra-stable, low-latency drivers for both Mac and PC platforms, and provides a versatile selection of I/O formats to accommodate a variety of gear. With its unique, slim-line design and stable performance, it’s the perfect audio interface for recording musicians on the go.
Features Roland UA-11 Duo-Capture Features:
  • Small, convenient audio interface for musicians on the go
  • 1/4-inch Mic/Guitar input with Hi-Z switch for connecting a guitar directly
  • 1/8-inch stereo input, 1/8-inch and 1/4-inch dual headphone outputs
  • Dedicated controls for input and output volume
  • Low latency ASIO driver; direct monitor function
  • USB bus powered
  • Cakewalk SONAR X1 LE included
Specifications
Roland UA-11 Duo-Capture Specifications:
Number of Audio Record/Playback Channels
Record: 1 pair of stereo Playback: 1 pair of stereo
Signal Processing
24 bits
Sampling Frequency
48 kHz, 44.1 kHz
Nominal Input Level
Line input: -10 dBu Guitar input: -25 dBu Microphone input: -45 dBu
Interface
USB
Controllers
INPUT VOLUME slider OUTPUT VOLUME slider INPUT GAIN button Hi-Z button INPUT MONITOR button SAMPLE RATE switch
Indicators
USB indicator PEAK indicator
Connectors
LINE IN jack (Stereo miniature phone type) MIC/GUITAR jack (1/4-inch phone type) PHONES jack (Stereo 1/4-inch phone type) PHONES (LINE OUT) jack (Stereo miniature phone type) USB connector (USB Type B)
Power Supply
Supplied from the computer via USB
Current Draw
96 mA
Accessories
Owner's Manual CD-ROM Cakewalk SONAR LE DVD-ROM (for Windows) USB Cable
Size and Weight
Width
81 mm 3-3/16 inches
Depth
119 mm 4-11/16 inches
Height
31 mm 1-1/4 inches
Weight
130 g 0 lbs. 5 oz.
SKU ROL-UA11
MPN UA-11
Media Details

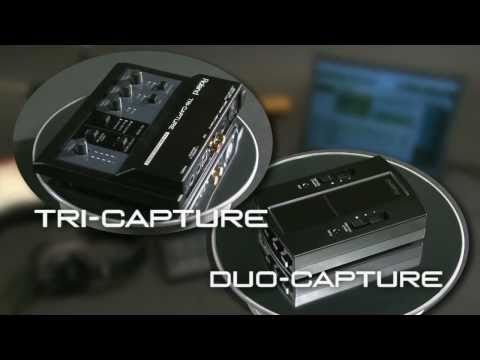

Roland UA-11 Overview- PRESS PLAY
Package Contents
  • (1) Roland UA-11 Duo-Capture
  • (1) USB Cable
  • (1) Driver Installation Disc
  • (1) Sonar X1 LE Installation Disc
  • (1) Owner's Manual
Warranty Details

Roland UA-11 User's Manual (PDF)

Warranty Information
Product: Period:
Roland UA-11 1 Year

Roland UA-11 Warranty
