Tascam DP-02 - Portastudio 8-Track Hard Disk Recorder with CDRW

Tascam DP-02 - Portastudio 8-Track Hard Disk Recorder with CDRW

Be the first to review this product

$399.00

Out of stock

Please Login or Submit Email
What is Make Offer?

Making an Offer is quick and easy! Simply begin by logging into your UniqueSquared account (Don't have an account? All you need to provide is a valid email address and we'll do the rest.) Once you're logged in, provide us with an offer price and a brief explanation (If necessary), then click "submit offer." It really is that simple!

Request a New Password

Enter the email address you used when creating your account and click submit to have a new password emailed to you.



Free Shipping*
Description CD-quality recording with no menus to stand between you and your music!

TASCAM's DP-02 makes recording simple by matching 8-track CD-quality recording with a Portastudio interface, so you can ditch the menus and concentrate on the music. A pair of record-quality TASCAM mic preamps features XLR inputs with phantom power for condenser mics and a guitar input for direct recording. Each channel gives you dedicated controls for instant access to fader level, record arm/track mute, pan, effect send, high and low EQ. There's also an EQ frequency button for finer control over the mix.

Two effects processors are included in the DP-02. A multi-effects processor on the input provides great-sounding overdrive, flange, delay, and more for your guitar, vocal, drum and bass tracks. In addition, there's a reverb processor on a send and return for adding hall, room, plate, or chamber reverb to your mix. The DP-02 is loaded with great TASCAM extras like a chromatic tuner, metronome, and bar-and-beat display for getting around your song.

The DP-02 records two channels at a time to a built-in 40GB hard drive. When you're satisfied with your production, arm the dedicated master track for your stereo mixdown. You can transfer your tracks and mixes or backup your song to a computer through a speedy USB 2.0 connection or burn it to a CD with the slot-loading drive. No other workstation makes recording so simple, affordable and fun as the TASCAM DP-02.

SKU TAS-DP02
MPN DP-02
Features TASCAM DP-02 Digital Portastudio Features:
  • Two XLR mic/line inputs with phantom power for condenser microphones
  • Eight-track recording at uncompressed 44.1k/16-bit audio quality
  • Portastudio-based interface with volume fader, pan, effect send, high and low EQ controls per channel
  • EQ frequency button to access high and low EQ shelf frequencies
  • USB 2.0 interface for transferring tracks, mixes and backup files to a computer
  • Dedicated stereo master track for mixdown
  • Internal metronome and bar/beat display for song position
  • Headphone output
  • Stereo line outputs on RCA analog and S/PDIF optical digital connectors
  • 40GB internal hard drive
  • Multi-effects processor with guitar, bass, vocal and drum programs
  • Stereo reverb processor with send/return controls for multi-channel mixing
  • Built-in chromatic tuner
  • Built -in CD-RW burner for CD mastering and song backup
Specifications
TASCAM DP-02 Digital Portastudio Specifications:
Recording
Recording Medium: 40GB internal hard drive Recording Resolution: 44.1 kHz/16-bit Number of Recording Tracks: 8 tracks plus Stereo Master track Number of Simultaneous Recording Tracks: 2 tracks Frequency Response: 20 Hz - 20 kHz (+1/-3dB) Signal-to-Noise Ratio: >85dB (A-weighting, 22kHz LPF) T.H.D.: 0.02% (1kHz, 10dBV, 22kHz LPF, master fader at nominal)
I/O
Analog In (INPUT A/B) Connector: XLR-3-31 type (Pin2:hot) and 1/4" TRS phone Nominal/Max Input Level: -8 dBu/+8 dBu Input Impedance: 2.4k ohms, >10k ohms on guitar input Phantom Power: 48V (on/off selectable)
Line Output
Connector: 2x unbalanced RCA jacks Nominal/Max Output Level: -10dBV/+6 dBV Output Impedance: 1k ohm
Effect Send
Connector: 1/4" phone (unbalanced) Nominal/Max Output Level: -10dBV/+6 dBV Output Impedance: 1k ohm
Digital Out
Connector: Optical (TOSLINK) digital audio output Data format: S/PDIF
Headphones (PHONE 1, 2)
Connector: 1/4" stereo phone jack Max. Output: 25mW + 25mW (@32 ohm)
Physical
Dimensions (w x h x d): 16.4" x 2.6" x 11.8" Weight: 4.1 lbs. Power Requirement: 12V, 2.5A (TASCAM PS-1225 power adaptor)
Media Details

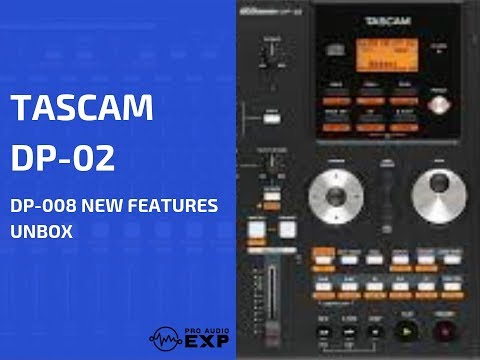

Tascam DP-02 Overview - PRESS PLAY
System Requirements
TASCAM DP-02 Requirements:
100-240 Volt Power
Package Contents
  • (1) TASCAM DP-02
  • (1) Power Adapter
  • (1) Power Cable
  • [100-240 Volt Power]
  • (1) Warranty Card
Warranty Details Warranty Information
Product: Period:
Tascam DP-02 1 Years
